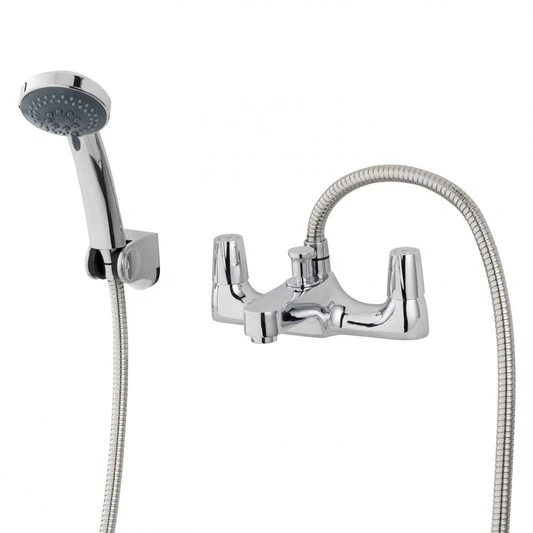

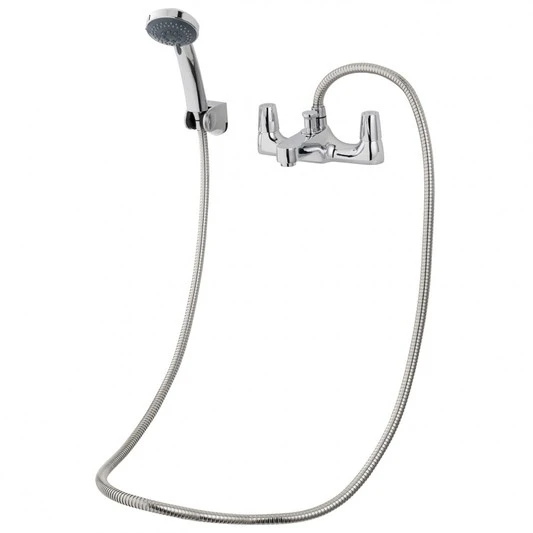

Product Description
This durable bath shower mixer interchangeably diverts water flow
between your bath and a three spray pattern rub clean shower head
(holder supplied), giving you one simple solution whether you wish to
have a bath or a shower. This bath shower mixer is supplied with an
extended 1.75m hose to offer additional reach in a bathtub, ideal for
washing children’s hair or rinsing a bathtub. Suitable for use with all
water systems, including gravity fed, the Exe bath shower mixer delivers
generous flow rates for a superb shower.
- Diverts between bath and handset
- Durable design including ceramic disc flow control
- Easy to operate quarter turn controls
- Includes extended 1.75m hose and a three spray rub clean shower head (with holder)
- Manual temperature control
Product Specification
- Colour: Chrome
- Guarantee: 5 Years
- Inlet Connection: ¾” BSP
- Minimum Running Pressure: 0.1 Bar
- Spray Modes: Multi Spray
- Temperature Control: Manual
| Temperature Control and Flow Performance | |
| Temperature Control | Manual |
| Open Outlet Flow Rate | 9 l/min at 0.1 Bar (shower) 15 l/min at 0.1 Bar (Bath) |
| Maximum Flow Rate with Flow Limiters Fitted | 12 l/min |
| Safety | |
| Installation Set Maximum Temperature Limit | No |
| Adjustable Maximum Temperature Stop | No |
| Automatic Shutdown | No |
| Controls | |
| Separate Flow and Temperature Controls | No |
| Combined Flow and Temperature Control | Yes |
| Temperature Control | Yes |
| Flow Diverter Control | Yes |
| Combined Flow and Diverter Control | No |
| Shower Fittings | |
| Number of Spray Patterns (Showerhead 1) | 3 |
| Shower Head Diameter | 80mm / 3.15 Inches |
| Rub Clean Nozzles | Yes |
| Hose Length | 1.75m anti-twist |
| Hose Retainer | No |
| Hose Material | Double interlocked stainless steel |
| Colours Available | Chrome |
| Finish | |
| Finish | Chrome |
| Guarantee and Approvals | |
| Guarantee | 5 Years |
| Installation | |
| Plumbing System | Suitable for all Systems |
| Water Entry Points | Rising |
| Inlet Connections | 3/4” BSP male threaded inlets for braided hose or rigid tap connector |
| Pipe Inlet Centres | 180mm |
| Outlet Connection | 1/2″ BSP Bottom |
| Minimum Running Pressure / Flow | 0.1 Bar @ 9 l/min (each tap) |
| Maximum Running Pressure | 5 Bar |
| Maximum Static Pressure | 10 Bar |
