Product Description

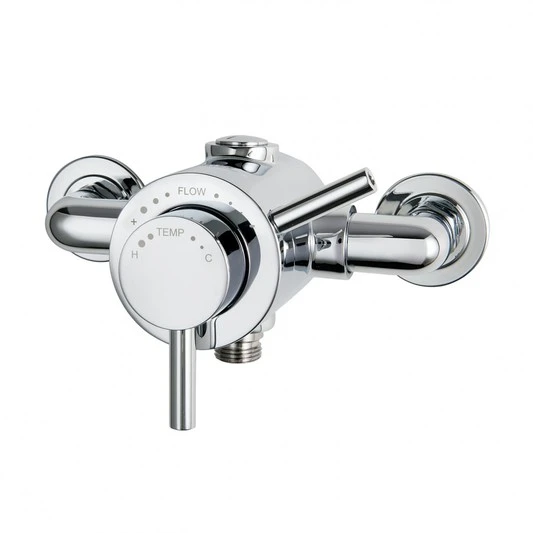

Ideal for use in care homes, hospitals and nursing homes, this TMV3 approved thermostatic exposed concentric mixer shower includes easy to grip and control, low resistance separate lever controls for flow and temperature, which are front facing for easy access. Greater accuracy and control is possible with the clear flow and temperature markings, whilst the Elina’s hygienic design avoids the formation of dirt traps. Kit and shower head sold separately.
- Thermostatic temperature control and TMV3 approval for added peace of mind
- Automatic shutdown safety feature should either the hot or cold water supplies fail
- Suitable for all pressure systems
- Separate tamper proof flow and temperature controls for ease of use
- WRAS approved for water supply regulations compliance
- Easy to install and maintain
Product Specification
- Colour: Chrome
- Guarantee: 5 Years
- Inlet Connection: 15mm Compression
- Minimum Running Pressure: 0.2 Bar
- Outlet Connection: ½” BSP
- Temperature Control: Thermostatic
| Temperature Control and Flow Performance | |
| Temperature Control | Thermostatic |
| Open Outlet Flow Rate | 7 l/min at 0.1 Bar |
| Maximum Flow Rate with Flow Limiters Fitted | 12 l/min |
| Safety | |
| Installation Set Maximum Temperature Limit | Yes |
| Adjustable Maximum Temperature Stop | No |
| Automatic Shutdown | Yes |
| Controls | |
| Separate Flow and Temperature Controls | Yes |
| Combined Flow and Temperature Control | No |
| Temperature Control | Yes |
| Flow Diverter Control | No |
| Combined Flow and Diverter Control | No |
| Finish | |
| Finish | Chrome |
| Guarantee and Approvals | |
| Guarantee | 5 Years |
| Approvals | Complies with: BS EN 1111, 1287 : WRAS, TMV3 |
| Installation | |
| Plumbing System | Suitable for all Systems |
| Water Entry Points | Rising, falling, back |
| Inlet Connections | 15mm compression to flat face union |
| Pipe Inlet Centres | 150mm |
| Outlet Connection | 1/2″ BSP Bottom |
| Minimum Running Pressure / Flow | 0.2 Bar at 8 l/min |
| Maximum Running Pressure | 5 Bar |
| Maximum Static Pressure | 10 Bar |
