Product Description
The Eden range makes great showering simple with its signature
elegant lever handle design, delivering precise temperature and flow
control, to create the ideal shower performance for all the family.

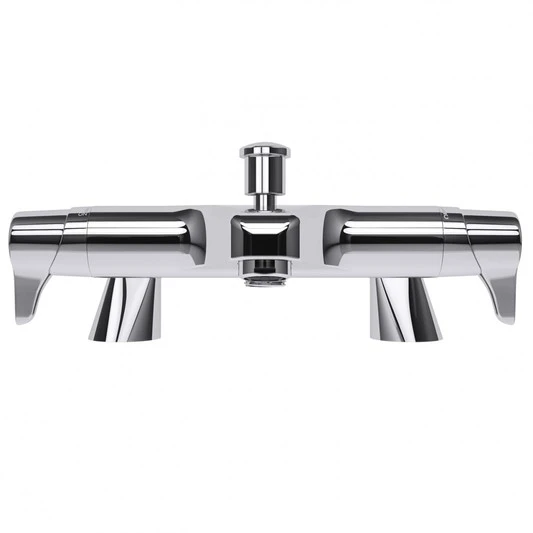

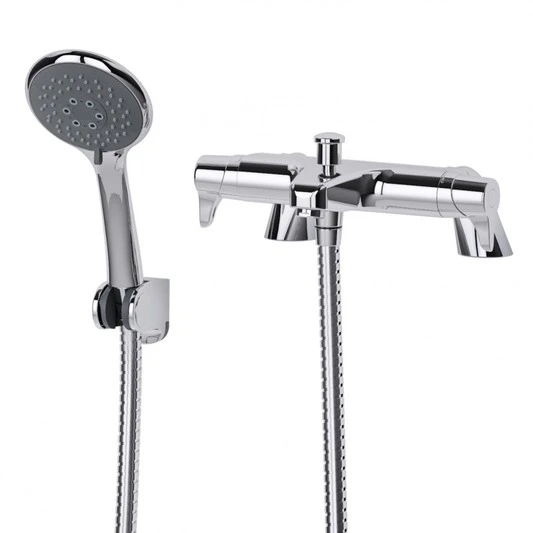

With the Eden bath shower mixer, you can easily switch the flow of
water from your bath to a shower handset with wall mounted shower head
holder. With TMV2 approved thermostatic temperature control and
suitability for use with all water systems, you can rest assured that
the Eden bath shower mixer is perfect for your family bathroom.
- Eden elegant lever metal handles
- Separate flow and temperature control with clear handle markings
- Easily switch water flow between your bath and shower handset (with wall mounted holder)
- Loose bath pillars supplied – Can be bath or wall mounted
- Suitable for use with all water systems
- Adjustable maximum temperature stop
- 5 year parts and labour guarantee
Product Specification
- Colour: Chrome
- Guarantee: 5 Years
- Inlet Connection: ¾” BSP
- Minimum Running Pressure: 0.5 Bar
- Spray Modes: Multi Spray
- Temperature Control: Thermostatic
| Temperature Control and Flow Performance | |
| Temperature Control | Thermostatic |
| Open Outlet Flow Rate | 4.0 l/min @ 0.1Bar |
| Safety | |
| Installation Set Maximum Temperature Limit | Yes |
| Adjustable Maximum Temperature Stop | Yes |
| Automatic Shutdown | Yes |
| Controls | |
| Separate Flow and Temperature Controls | Yes |
| Combined Flow and Temperature Control | No |
| Temperature Control | Yes |
| Flow Diverter Control | No |
| Combined Flow and Diverter Control | No |
| Shower Fittings | |

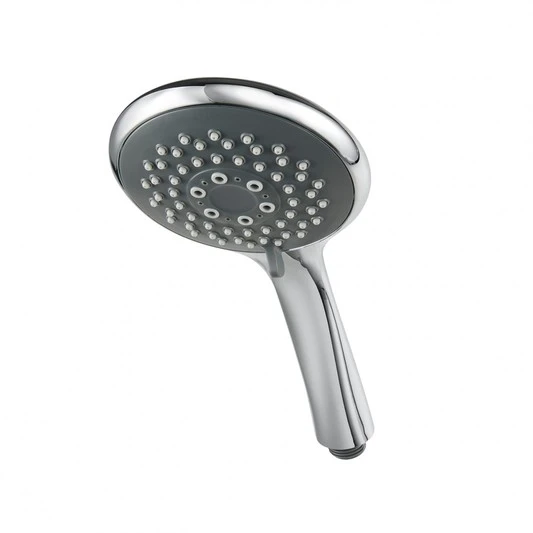

| Number of Spray Patterns (Showerhead 1) | 5 |
| Shower Head Diameter | 110mm / 4 inches |
| Rub Clean Nozzles | Yes |
| Hose Length | 2m |
| Hose Material | Double interlocked stainless steel |
| Colours Available | Chrome |
| Finish | |
| Finish | Chrome |
| Guarantee and Approvals | |
| Guarantee | 5 Years |
| Approvals | Complies with: BS EN 1111, 1287, WRAS, TMV2 |
| Installation | |
| Plumbing System | Suitable for all Systems |
| Water Entry Points | Rising |
| Inlet Connections | 3/4” BSP male threaded inlets for braided hose or rigid tap |
| Pipe Inlet Centres | 180mm (on bath pillars), 150mm (on shower valve) |
| Outlet Connection | 1/2″ BSP Bottom |
| Minimum Running Pressure / Flow | 0.5 Bar @ 8 l/min (each tap) |
| Maximum Running Pressure | 5 Bar |
| Maximum Static Pressure | 10 Bar |
