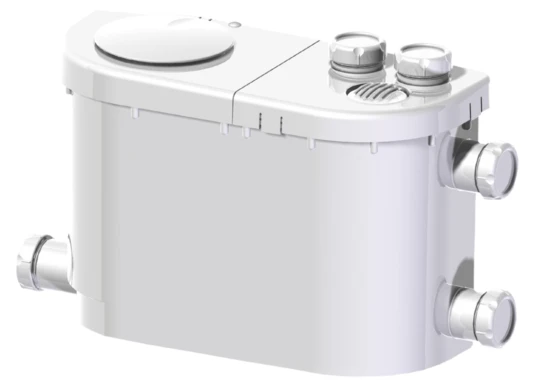

Stuart Turner Wasteflo Ls 5 Lifting Station – 46577

Original price was: £383.88.Current price is: £97.99.

SKU: C2HVD 46577 Categories: Macerators, Pumps

Superior Quality Goods

Top Quality Products

Buy with Confidence, Get Quality

Hassle-Free Payments

Product Description

The Wasteflo LS5 lifting station is ideal when you need to create a shower room, kitchen or utility room anywhere in your home or commercial building. A bath, showr, basin, sink, washing machine and dishwasher can all be connected.

Product Specification

Technical Specification

General
Guarantee	2 Years
Features
Slimline design
Noise level	50 dB (typical)
Performance
Maximum head	7.7 metres
Pumping distance (vertical)	Up to 7 metres
Pumping distance (horizontal)	Up to 72 metres
Maximum flow	120 l/min
Maximum ambient air temperature	40 °C
Min / Max water temperature	Min 4 °C / Max 50 °C (continuous duty), Max 70 °C (short term rating)
Connections
Inlet(s)	32 mm (1¼ “) dia. (standard), 20 mm / G ¾ elbow connection (washing machine)
Outlet	32 mm, wastepipe adaptor
Motor
Duty rating	Continuous
Electrical
Power supply/phase/frequency	230 V a.c./ 1 / 50 Hz
Current (full load)	2.0 Amps
Power consumption	460 Watts
Fuse rating	5 Amps
Power cable (pre-wired)	1.5 metres
Physical
Enclosure protection	IPX4

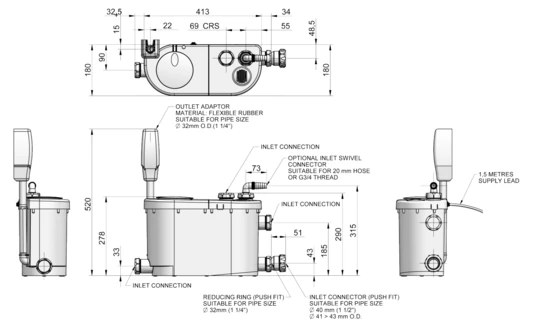

Length	413 mm
Width	180 mm
Height (excluding hoses)	278 mm
Weight (including fittings)	7.8 Kg
