Product Description

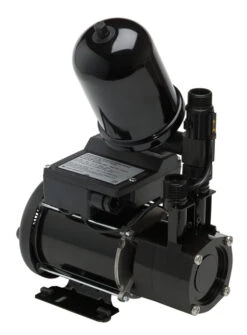

Stuart Turner Showermate Universal U2.6 Bar Single – 46534
Product Specification
- Guarantee: 2 Years
- Head Type: Positive Head
- Max Pressure Rating: 2.6 Bar
- Pump Type: Single Impeller
The Showermate Universal 2.6 bar Single pump is
designed to improve water supplies to single taps or to pump
blended water from a shower mixer in negative head plumbing
systems.
Technical Specification
| The Pump | |
| Pressure switch | yes |
| Flow switch sensitivity | approx. 0.8 l/min |
| Max. inlet head | 6 metres |
| Plumbing connection | G ¾ ” male |
| Flexible hose | G ¾ ” female x 15 mm push-in c/w isolating valves |
| Anti vibration feet | Â yes |
| WRAS approved | Â yes |
| The Motor | |
| Power Supply | 230/1/50 |
| Enclosure rating | IP22 |
| Motor | Induction type, permanent capacitor, auto resetting protective thermotrip |
| Power consumption | 280 Watts |
| Full load | 1.2 Amps |
| Fuse rating | 5 Amps |
| Pre wired | Â yes |
| Rating | Int (S3) 30 mins on / 30 mins off @ 9 l/min |
| Gross weight (packed) | 5.6 Kg |
| 1 Year Guarantee | Can be extended free to 2 years -United Kingdom only |
