Product Description
Product Specification
- Depth: 162mm
- Guarantee: 2 Years
- Head Type: Negative Head
- Height: 228mm
- Impeller Type: Regenerative
- Max Pressure Rating: 4.5 Bar
- Pump Type: Single Impeller
- Width: 214mm

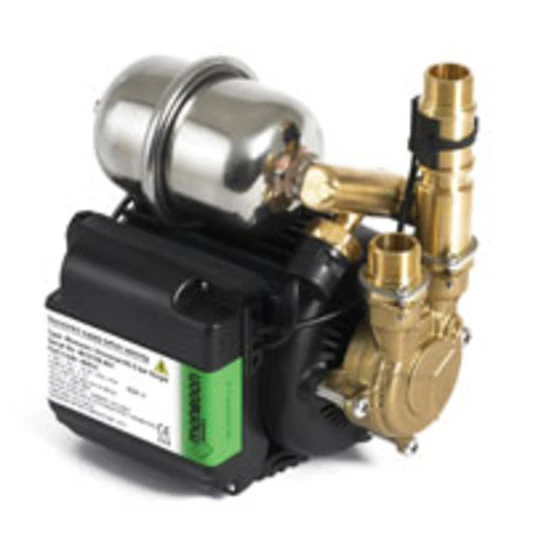

Universal single pumps can be used in pairs to boost vented
systems to pump hot and cold water supplies independently, or as a
single pump to boost a water supply as required.Â
- Ideal for boosting hot water service to a common mixer where
the cold supply is mains fed. - Ideal for boosting hot and cold supplies separately.
- Suitable for increasing water pressure to a combi boiler via a
break tank.
Technical Specification
| The Pump | |
| Inlet strainer | Â |
| Stuart hard face mechanical seal | Â |
| Flow switch sensitivity | approx. 0.6 l/min |
| Pressure switch | Â |
| Max. inlet head | 12 metres |
| Plumbing connection | G ¾ ” male |
| Flexible hose | G ¾ ” female x 22 mm push-in c/w isolating valves x 305 mm long |
| Anti vibration feet | Â |
| WRAS approved | Â |
| The Motor | |
| Power Supply | 230/1/50 |
| Enclosure rating | IPX4 |
| Motor | Induction type, permanent capacitor, auto resetting protective thermotrip |
| Power consumption | 440 Watts |
| Full load | 2.5 Amps |
| Fuse rating | 5 Amps |
| Pre wired | Â |
| Rating | Continuous (S1) @ 9 l/min and above |
| Gross weight (packed) | 7.6 Kg |
| 2 Year Guarantee | Can be extended free to 3 years -United Kingdom only |
| Part Number: | 46414 (United Kingdom specification only) |
