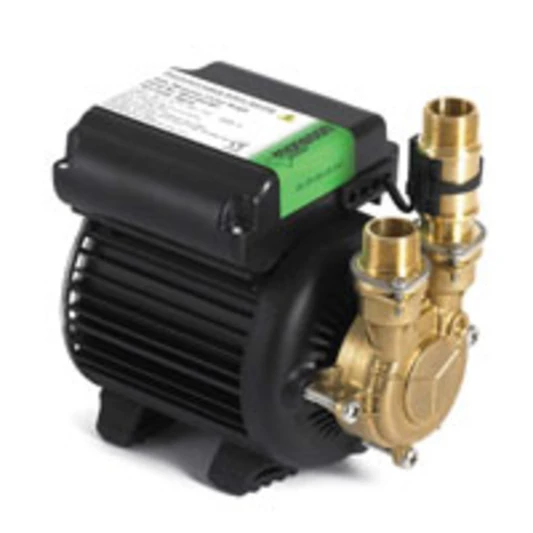

Name: Online Outlet Deals: Stuart Turner Monsoon Standard S4.5 Bar Single - 46420 at Grundfos Sales Store.
SKU: C2HVD 46420
Price: 95.99 GBP
Availability: InStock

Product Description

Positive Head

4.5 bar Twin

2 Year Guarantee extendable to 3 years

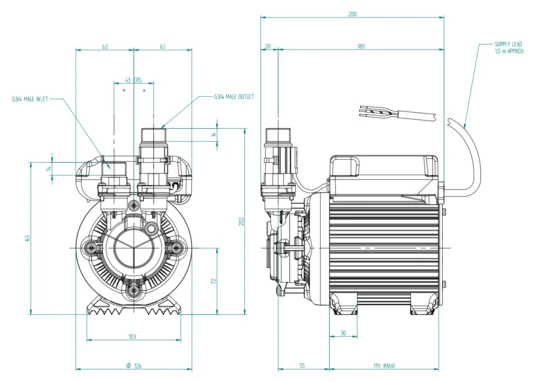

Product Specification

Depth: 126mm
Guarantee: 2 Years
Head Type: Positive Head
Height: 202mm
Impeller Type: Regenerative
Max Pressure Rating: 4.5 Bar
Pump Type: Single Impeller
Width: 200mm

Standard single pumps are ideal for boosting the water pressure and flow in vented systems. They may be used to:

Boost the water pressure in either the hot or cold water supply.
Boost the blended water outlet between the shower valve and the shower rose.

Technical Specification

The Pump
Hot & cold inlet strainers
Stuart hard face mechanical seal
Flow switch sensitivity	approx. 0.6 l/min
Max. inlet head	14 metres
Plumbing connection	G ¾ ” male
Flexible hose	G ¾ ” female x 22 mm push-in c/w isolating valves x 305 mm long
Anti vibration feet
WRAS approved
The Motor
Power Supply	230/1/50
Enclosure rating	IPX4
Motor	Induction type, permanent capacitor, auto resetting protective thermotrip
Power consumption	192 Watts
Full load	1.1 Amps
Fuse rating	5 Amps
Pre wired
Rating	Continuous (S1) @ 9 l/min and above
Gross weight (packed)	6.5 Kg
2 Year Guarantee	Can be extended free to 3 years -United Kingdom only
