Product Description

Flo~mate offers a simple solution to boost incoming mains water pressure without the need for a cold water break tank and is designed to be connected directly to the incoming mains. Flo~mate is fully WRAS approved and operates within the current UK Water Regulations.

At times when there is insufficient mains water pressure, Flo~mate is designed to ensure that the pump will deliver an additional 1.5 bar to any existing mains pressure at a maximum flow rate of 12 l/min, meeting the requirements of most combination boilers.

Flo~mate also features a built in bypass, which means that when the mains pressure exceeds 1.5 bar, the performance is not restricted. The pump will automatically start when a flow rate of 0.6 l/min or more exists.

Product Specification

Technical Specification

Pump
Body	Brass
Impeller	Brass
Pump shaft	Stainless steel
Seal options	Nitrile/carbon/silicon

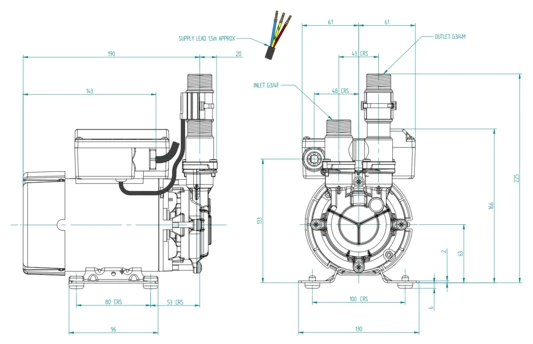

Pump connection size:
Inlet	G ¾ male
Outlet	G ¾ male
WRAS approved
Operating Conditions
Max. water temp.	35°C
Min. water temp.	4°C
Max. suction lift	Flooded
Max. ambient temp.	40°C
Max. inlet pressure	3.0 bar
Min. flow	0.6 l/min
1 Year Guarantee	Can be extended free to 2 years -United Kindom only
Part Number:	46574 (United Kingdom specification only)
