Product Description

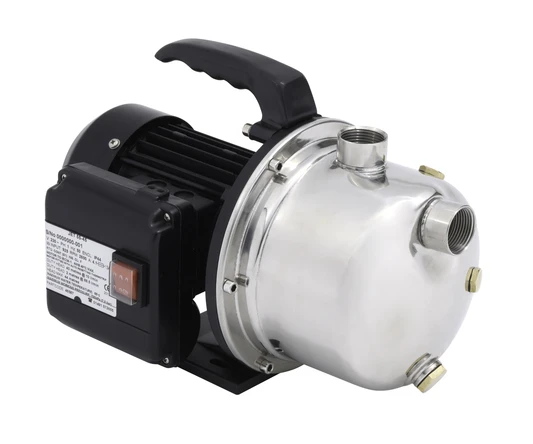

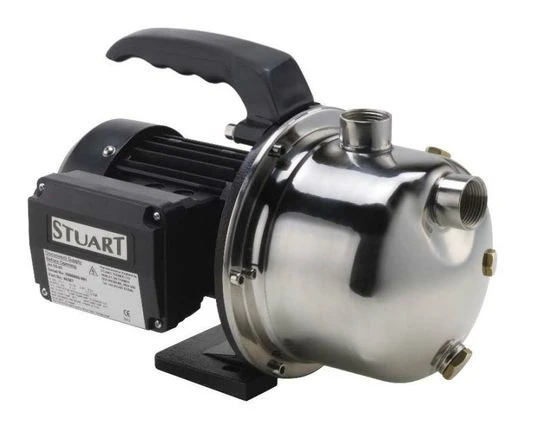

Stuart Turner Jet 55-45 – 46587

Product Specification

Ideal for the high pressure delivery of clean non-potable water from a water tank / cistern. Jet pumps are supplied with a carry handle, a manual on/off switch and power lead fitted with a 13 amp fused plug. The range is suitable for general purpose, pumping cold water.

Once initially primed with clean water the Jet pump will self prime the suction pipe up to 5 metres.

Application
Designed for pumping clean non-potable water. The portable Jet pump is ideal for many household and light industrial uses. Water pressurisation and lawn sprinkler boosting are just two of its many applications.

Features:

Carrying handle for portability
1.5 m lead and 13 Amp plug fitted
Built-in on/off switch
Easy installation
Reliable
Quiet operation

Technical Specification

The Pump
Body	Stainless steel
Impeller	Plastic
Pump Shaft	Stainless steel
Seal options	EPDM/carbon/ceramic
Pump connections:
Inlet	G 1 female
Outlet	G 1 female
Gross weight (packed)	7.7Kg
The Motor
Power Supply	230/1/50
Enclosure rating	IPX4
Motor	Induction type permanent capacitor thermally protected
Rating	Continuous (S1)
Nominal watts	370 Watts
Max. watts consumed	650 Watts
Amps full load	2.9 Amps
Operating Conditions
Max. water temp.	35°C
Min. water temp.	4°C
Max. suction lift	5 m
Max. ambient temp.	40°C
Max. inlet head	5 m
Max. working pressure	4.8 bar
1 Year Guarantee	United Kingdom only
