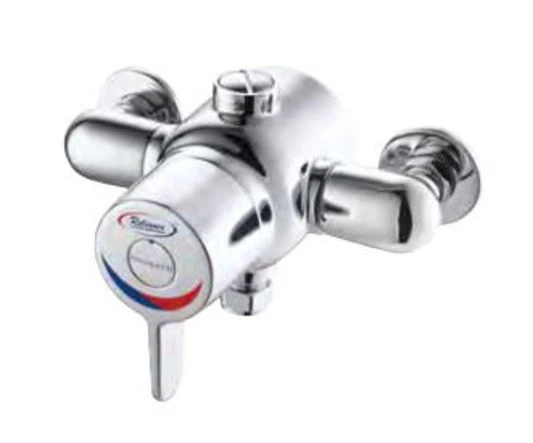

Reliance Showerguard E3 Exposed Sequential Control Shower (15Mm) – Show153100

• Provides stable mixed water temperature
• Rotational elbows through 360 degrees to suit any pipework orientation
• Includes check valve, strainer and flow regulator (plus isolators on C3 model

The Showerguard E3 and C3 shower controls are TMV3 approved
thermostatic sequential showers. A sequential control is where the
on/off operation and temperature control are achieved by turning the
same control knob; the first movement turns the shower to the cold
position and subsequent movement counter clockwise increases the
temperature up to a set maximum (pre-set 38°C).

They are built around a signle cartridge principle, meaning that the
main working components are included in an easy to replace one-piece
cartridge. Each shower includes integral check valves and strainers. The
Showerguard C3 also icorporates built-in isolators. Both inlet and
outlet connections can be altered on site for complete flexibility of
installation, to suit the orientation of the supply pipes. In addition
to this the outlet fitting can be removed and reversed so that top or
bottom connections can be used.

Specification:

• Rapid failsafe on both hot and cold supply failure
• Provides stable mixed water temperature
• Lever handle for ease of use
• Rotational elbows through 360° to suit any pipework orientation
• Top or bottom outlets can be changed on site for flexibility
• Single piece thermostatic cartridge, same for both E3 and C3 models
• Includes check valve, strainer and flow regulator (plus isolators on C3 model)
