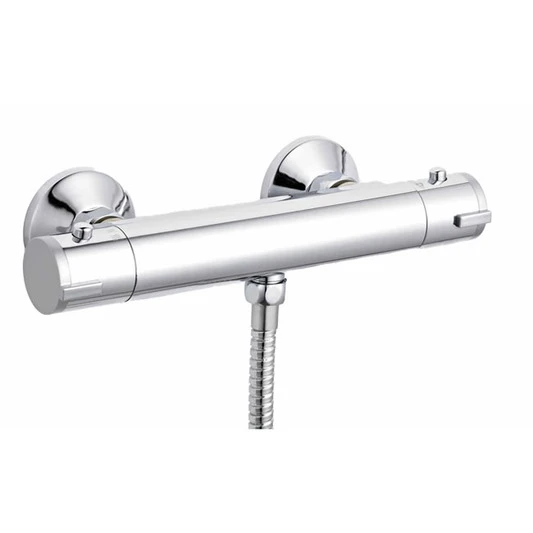

Nuie Thermo Bar Valve Bottom Outlet Abs – Vbs001

Valve features:

• Popular caravan shower valve
• Thermostatic control
• Safety temperature stop at 38° with override button
• Individual control for flow and temperature
• Suitable for unbalanced water pressures
• Suitable for combination boilers
• 5 Year Guarantee (see installation manual for restrictions)
• 45mm pipe centres
• Chrome finish
• Water inlets – Hot Inlet Bottom and top inlet Cold.

Pressure:

• Minimum working pressure required: 0.5 bar
• Recommended working pressure – 1 – 3 bar
• Maximum working pressure: 5 bar (pressure above 5 bar must be reduced via pressure reducer)

Water temperature:

• Inlet hot water supply maximum: 85°C
• Inlet hot water supply recommended: 65°C
• Inlet cold water supply: 10°C – 25°C
• IMPORTANT: A minimum of 10°C difference between outlet temperature and hot supply must be maintained at all times.
