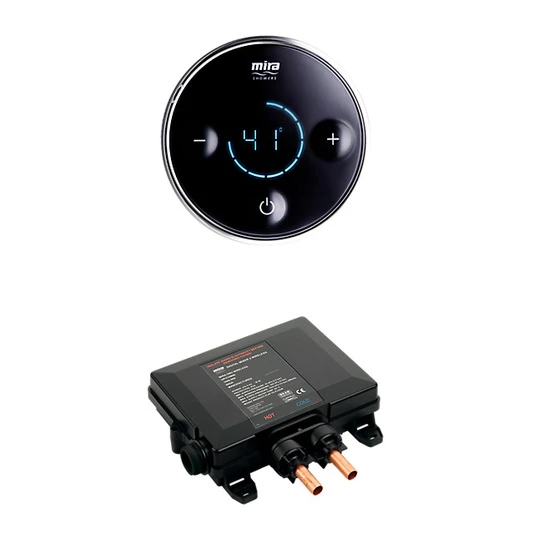

Mira Platinum Hp/Combi Digital Mixer Shower W/O Ftgs – 1.1666.003

Welcome to the future of showering. The Mira Platinum Valve and Controller, with wireless digital technology, offers you ultimate control. High pressure option.

Temperature Control

• Thermostatic Technology
• Automatic Shutdown: Yes
• Maximum temperature setting for increased safety

Installation – Control Unit

Data Connection to digital mixer: Wireless

Installation – Digital Mixer

• Inlet connections: 15mm Push Fit (Supplied) or 15mm Compression
• Outlet connection: 15mm Push Fit (Supplied)
• Data connection to control unit: Wireless
• Supply Voltage: 230v + 10%
• Supply Rating: 3 amp

Supply Conditions

• Cold Water range 1°C-20°C
• Hot Water range 55°C-65°C
• Minimum maintained pressure: High pressure: 0.5 bar (5 metre head)
• Maximum maintained pressure: High pressure: 5.0 bar (50 metre head)
• Maximum static pressure: High Pressure: 10.0 bar (100 metre head)

Benefits for your customer

• Flow rate: Up to 16 l/min at 1 Bar
• Separate temperature and flow controls
• Programmable functions
• Flipstream Technology™ – 1 flip action, 4 unique sprays

Easy to fit & Maintain

• Large, long life filters
• Replaceable cartridge
• Built in push-fit isolators
