Mira Mode Bath Pumped – 1.1874.002

Experience digital technology at the push of a button with the Mira Mode digital bathfill. Its stylish push-button controller is the epitome of minimalist design, perfectly suited to your contemporary bathroom with its luxurious chrome finish. Designed to fast-fill your bath to your precise temperature selection

Precise Control

Precise thermostatic temperature control with adjustable maximum temperature setting, ensuring safer bathing for all the family. Simply rotate the controller to discover your ideal temperature.

Powerful Performance

Enjoy a fast-fill bath with up to 15 litres per minute fill rate from the overflow bath filler.

Added Luxury

Use the Mira Mode smartphone app to set your ideal temperature and depth, and add up to 10 bath fill presets.

Minimalist Design

Luxurious chrome finish with stylish LED lights on the controller.

Easy to use

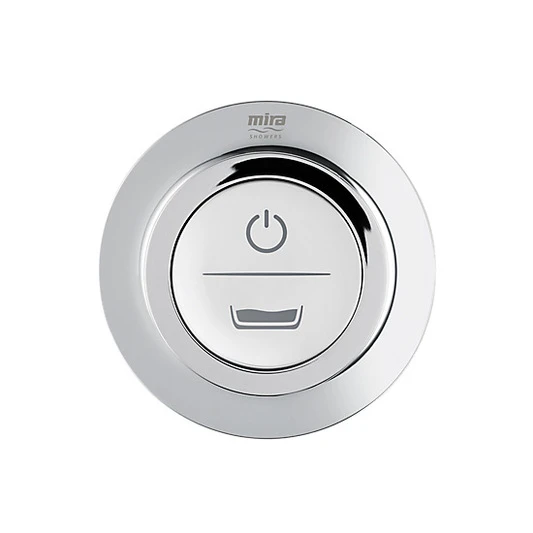

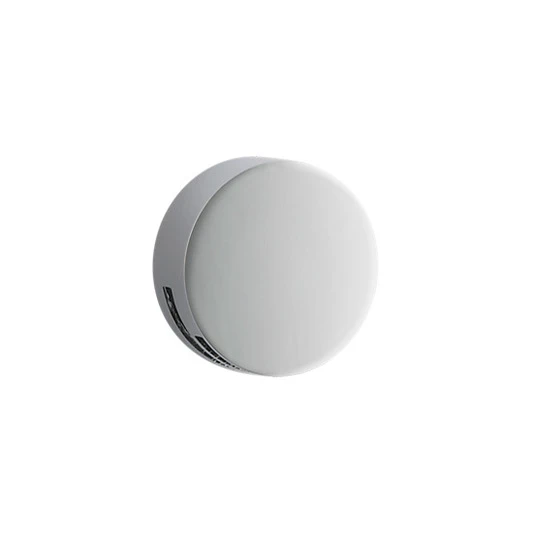

Simple push button controller makes it easy to use for all the family. Plus additional on/off remote control can be placed outside the bath area.

Temperature control:

• Thermostatic technology
• Indicator light signals when bath fill has reached desired temperature
• Maximum temperature setting for increased safety

Installation – Units & fittings:

• Water entry points: Overflow bath filler
• Inlet connections: 15mm push fit (supplied) or 15mm compression
• Data connection to difital mixer: Low voltage data cable

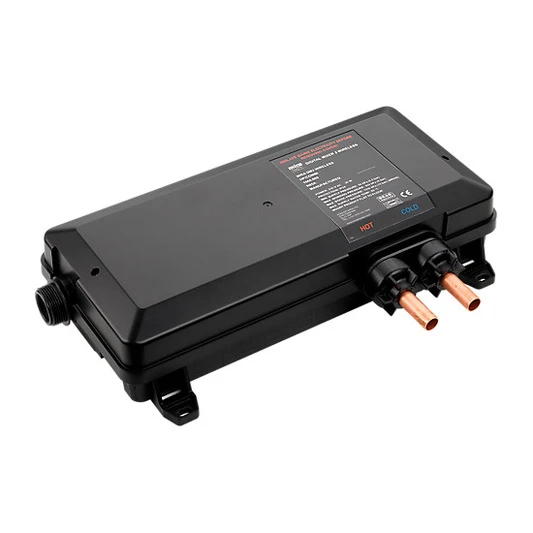

Installation – Digital mixer:

• Inlet connections: 15mm push fit (supplied) or 15mm compression
• Outlet connection: 15mm push fit (supplied)
• Data connection to control unit and fittings: Low voltage data cable
• Supply voltage: 230V + 10%
• Supply rating: 3 amp

Easy to fit & maintain:

• Replaceable checkvalve and filters
• Supplied with push fit isolators

Customer benefits:

• Flow rate up to 16l/min at 1 bar
• Rotary temperature control dial
• Personalised bath fill options with the Mira Mode app
• Overflow bath filler

Product approvals:

• WRAS approved
• KIWA approved
