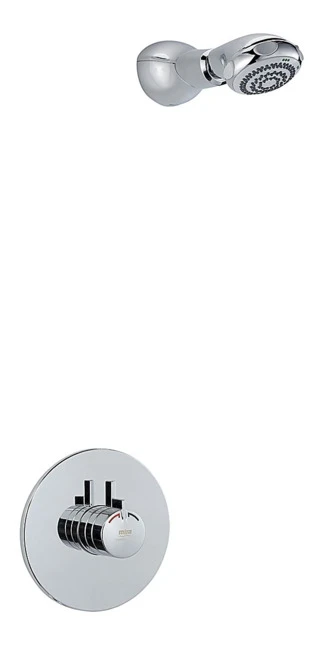

Mira Miniduo Mixer Shower With Eco Showerhead Bir – 1.1663.243

Mini size, maximum performance. Beautifully compact, but with a powerful punch, the thermostatic technology and dual controls on the Mira Mini Duo range make showering safe and exhilarating.

• Thermostatic temperature stability keeps showering safe for all the family
• Separate temperature and flow controls lets you fine tune your perfect shower
• 4-spray showerhead with partial rub-clean rubber nozzles makes cleaning easy
• Mira Miniduo with Eco Showerhead is approved by the BMA and Waterwise as water-efficient – saving up to 75% water compared to the standard Mira Miniduo at 0.5 bar pressure.
• Can be fitted to falling, rising, and rear water supplies
• Approved to TMV2 standards, which means you know its thermostatic control is the very highest quality
• Clean chrome finish

• GTIN: 5013181041491

• Colour: Chrome
• Depth: 53mm
• Fitment Style: Concealed
• Flow Limited: 12 litre/min
• Guarantee: 3 Years
• Height: 183mm
• Inlet Connection: 15mm Compression
• Minimum Running Pressure: 0.1 Bar
• Plumbing System: Low Pressure
• Temperature Control: Thermostatic
• Water Entry: Back
• Width: 183mm

Technical Information
Limitations of Use
Mira Miniduo should not be used for applications where an outlet flow controls forms part of the showering fitting.

Application
Mira Miniduo is suitable for installations as part of the following plumbing systems:
Gravity fed
Fully modulating instantaneous gas heated
Mains pressurised (heated from a thermal store)
Unvented mains pressure
Pumped

When the Mira Miniduo used with mains pressure appliances at the pressures above 5.0 bar maintained a drop-tight pressure reducing valve must be installed to maintain performance.

Supply Conditions
Recommended hot inlet supply temperature 55°C – 65°C
Maximum hot temperature: 85°C (Maximum recommended is 65°C Ref BS6700)
Recommended cold temperature 5°C – 25°C
Minimum cold temperature: 1°C
Hot and cold supplies to be at nominally equal pressure.
Minimum maintained pressure: 0.1 bar
Maximum maintained pressure: 5.0 bar
Maximum static pressure: 10.0 bar

Performance
The specification performance outlined bellows is achieved with inlet water supply temperatures of 15°C cold and 65°C hot, the mixed temperature in the range 35°C – 45°C and nominally equal inlet supply pressures.
Temperature selection range: Full cold to reset maximum (factory set at 43°C) but can be easily reset depending on the site conditions.
The blended water temperature is typically maintained within 2°C with a 10°C change in either the hot or cold supply temperatures.
Shutdown to seepage in typically two seconds if either the hot or cold supply fails, provided the hot supply is more than 12°C above the blend temperature.
The blended water is maintained within 2°C range when the pressure of either supply is reduced by 50% (0.5 bar maintained).
For high pressure supplies, a 12l/min flow regulator (supplied) should be fitted to the outlet.

Maintenance
This product is designed to be maintenance free apart from inlet filters which should be cleaned regularly.
Maintenance should be carried out in accordance with the information in the Installation and User Guide supplied with each product. This guide should be retained by the user for future reference.
Conveniently situated isolating valves must be fitted to the supply pipework to allow complete maintenance of the product.

Guarantee
Guaranteed for three years from the date of purchase against faulty materials or workmanship.

Installation
The plumbing installation must comply with the requirements of UK Water Regulations/Bylaws (Scotland), Building Regulations or any particular regulations and practices specified by the local water company or water undertakers.
The installation should be carried out by a plumber or a contractor who is registered or is a member of an association.
Protect the product from damage when making soldered connections. Some fluxes may cause damage to plastic components.

Mira Miniduo Built-in (Shower control only)
Inlet connections: 15mm compression
Outlet connection: 15mm compression
Mounting bracket: for easy rear mounting
Rising and falling inlet supplies go directly into the shower control without the need for additional elbows
Right-angle hose connector
Easily accessible filters
Reversed inlet connections supported
Alternative top or bottom outlet supported.
