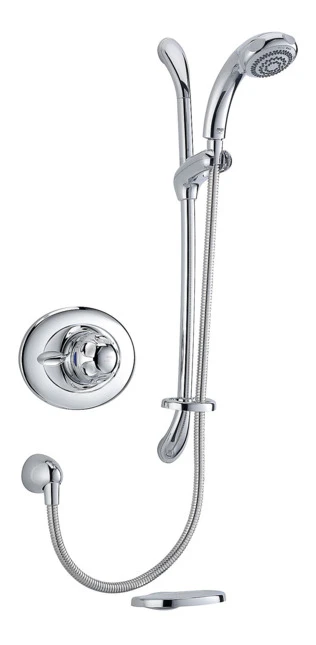

Product Description
The UK’s best selling thermostatic mixer. Unbeatable at all pressures, the Mira Excel is our best performing mixer and is the choice of the professional installer. With additional easy install features, saving time and installation costs.
- Thermostatic temperature stability keeps showering safe for all the family
- A maximum temperature stop enhances safety- you can override it if you want a hotter shower
- Separate temperature and flow controls let you fine tune your perfect shower
- 4-spray showerhead with rub-clean rubber nozzles makes cleaning easy
- Easy to fit therefore saving on installation costs – it’s the installer’s choice
- A ceramic flow control keeps limescale at bay- ideal if you have hard water
- Unrivalled performance on any water system even at low pressures
- Mira Excel matching taps available
- Clean chrome finish
- GTIN: 5013181010299
Product Specification
- Colour: Chrome
- Depth: 73mm
- Fitment Style: Concealed
- Guarantee: 5 Years
- Height: 155mm
- Inlet Connection: 15mm Compression
- Minimum Running Pressure: 0.1 Bar
- Plumbing System: Low Pressure
- Temperature Control: Thermostatic
- Water Entry: Back
- Width: 208mm
Technical information
Principle of Operation
This fully thermostatic shower control mixers hot and cold water to the desired showering temperature and automatically compensates for variation in both the temperature and pressure of the inlet water supplies to maintain the blend temperature.
Limitations of Use
The Mira Excel should not be used for applications where an outlet flow control forms part of the shower fitting.
The product and its components are only suitable for normal water supplies and should be cleaned only with mild washing detergent or soap solution. Light golden products should be cleaned using a soft damp cloth only.
Temperature
Wax capsule temperature sensor
Automatic shutdown to seepage within two seconds if cold supply fails
Adjustable override and maximum temperature stop (may be disabled)
Temperature control range: 30°C – 50°C
Maximum hot water temperature: 85°C (BS6700 recommends a maximum 65°C)
Minimum temperature of differential: 12°C (between blend and hot)
Pressure (inlet supplies)
Minimum maintained pressure: 0.1 bar
Maximum maintained pressure: 5.0 bar
Maximum static pressure: 10.0 bar
Maximum pressure loss ratio: 10:1
Performance
The specification performance outlined below for the low pressure setting is achieved with inlet water supply temperatures of 15°C cold 65°C hot and nominally equal inlet supply pressures:
Close thermostatic control achieved in the range 30°C to 50°C
The blended water temperature is maintained within 1°C with a 10°C change in the hot and cold supply.
The Mira Excel will affect a shutdown to seepage in typically two seconds if the cold supply.
Shutdown to seepage is affected only if the hot supply is a minimum of 12°C above the blend temperature.
The blended water is maintained with -/+1°C with a pressure loss ratio of 2:1 on either the hot and cold side.
Guarantee
Guaranteed for five years from date purchase against faulty materials and workmanship.
Application
The Mira Excel is designed for installation as part of the following plumbing systems:
Gravity fed
Fully instantaneous gas heated
Mains pressurised (heated from a thermal store)
Unvented mains pressure
Pumped
When the Mira Excel is used at pressures above 5.0 bar maintained, a pressure reducing valve must be installed to maintain performance.
Installation
The plumbing installation must comply with the requirements of UK Water Regulations/Bylaws (Scotland), Building Regulations or any particular regulations and practices specified by the local water company or water undertakers. The installation should be carried out by a plumber or contractor who is registered or is a member of an association.
Protect the product from damage whilst making soldering connections. Some fluxes can cause damage to plastic components.
Mira Excel B-BIV and Mira Excel B-BIR
Built-in
Inlet connections: 15mm compression
Outlet connections: 15m compression
Mounting bracket for thin panel thickness between 4mm – 21mm, or solid, dry lined or stud partition walls
Building-shroud for product protections during plastering up
Reversed inlet connections supported
Alternative top or bottom outlet supported
Large serviceable inlet filters
