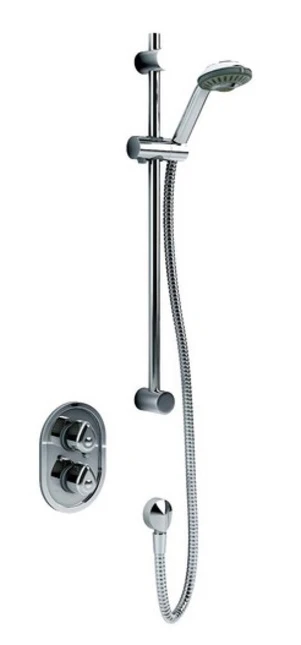

Inta Plus Thermostatic Concealed Shower With Flexible Slide Rail Kit – 20015665Cp

Inta Plus Thermostatic Concealed Shower With Flexible Slide Rail Kit – 20015665Cp

• Colour: Chrome

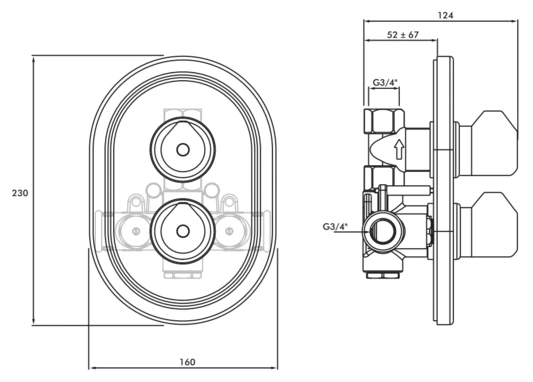

• Depth: 124mm
• Fitment Style: Concealed
• Guarantee: 5 Years
• Height: 230mm
• Inlet Connection: 22mm Compression
• Minimum Running Pressure: 0.2 Bar
• Plumbing System: Low Pressure
• Temperature Control: Thermostatic
• Water Entry: Back
• Width: 160mm

The Plus combines a clean, simple style with Inta’s thermostatic protection. Practical and elegant, the Plus range can be used to enhance the appeal of the bathroom setting whilst protecting those who use the bath or shower.

Suitable for use with unvented supplies, combi boilers, gravity and mains pressure systems

Thermal cartridge technology

Temperature stability of ± 2°C

Fail safe protection on both the hot and cold supplies

Operating pressure range of 0.2 to 5 bar

WRAS and TMV2 approved

Technical Specifications

Factory pre set temperature: 38°C with max temp stop
Inlet connections: 22mm compression elbows
Min inlet pressure dynamic: 0.2 bar
Max inlet pressure static: 5 bar
Max inlet temperature: 85°C
Min temp to achieve hot or cold failsafe: 15°C
Outlet connections: 22mm compression
System installation: Unvented, pressurised, gravity and combi boilers
