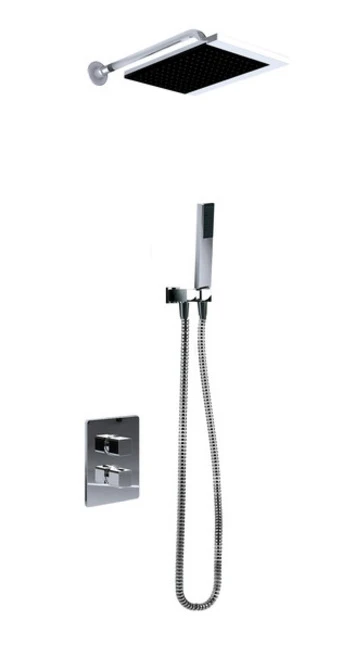

Inta Mio Thermostatic Concealed Shower (Dual Outlet) With Overhead Soak & Rinse Station – Mi80017cp

Inta Mio Thermostatic Concealed Shower (Dual Outlet) With Overhead Soak & Rinse Station – Mi80017cp

• Colour: Chrome
• Depth: 54mm
• Fitment Style: Concealed
• Guarantee: 5 Years
• Height: 200mm
• Inlet Connection: 15mm Compression
• Minimum Running Pressure: 0.4 Bar
• Plumbing System: Low Pressure
• Temperature Control: Thermostatic
• Water Entry: Back
• Width: 150mm

Beautiful lines and contrasting chrome and black define the Mio range. Make a bold statement in the shower with this elegant shower mixer and its stylish range of accessories. Create the bathroom look you really want with the peace of mind that goes with thermostatic protection.

• Suitable for use with unvented supplies, combi boilers, gravity and mains pressure systems
• Thermal cartridge technology
• Temperature stability of +/-2°C
• Fail safe on hot and cold supplies
• Operating pressure range of 0.4 to 5 bar
• Safe touch body

Technical Specifications
Factory pre set temperature: 38°C with max temp stop
Inlet connections: 15mm compression elbows
Max inlet pressure static: 5 bar
Max inlet temperature: 85°C
Min inlet pressure dynamic: 0.4 bar
Min temp to achieve hot or cold failsafe: 15°C
Outlet connections: 15mm compression
System installation: Unvented, pressurised, gravity and combi boilers
