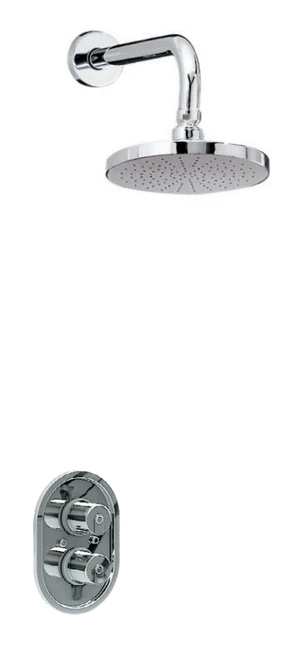

Inta Deluge Thermostatic Concealed Shower With Overhead Arm & Soaker – Dl40013cp

Inta Deluge Thermostatic Concealed Shower With Overhead Arm & Soaker – Dl40013cp

• Colour: Chrome
• Guarantee: 5 Years
• Height: 230mm
• Inlet Connection: 15mm Compression
• Minimum Running Pressure: 0.4 Bar
• Plumbing System: High Pressure
• Temperature Control: Thermostatic
• Width: 160mm

The inta Deluge range of showers has been designed to give you the best of both worlds. The inta collection offers the ultimate balance between excellent performance and the latest designs to suite every bathroom.

Concealed shower valve with independant control of temperature and flow

Suitable for use with unvented supplies, combi boilers, gravity and mains pressure systems

Thermal cartridge technology

Temperature stability of +/-2°C

Fail safe on hot and cold supplies

Operating pressure range of 0.4 to 5 bar

TMV2 and WRAS approved

Technical Specifications
Factory pre set temperature: 38°C with max temp stop
Inlet connections: 15mm compression elbows
Max inlet pressure static: 5 bar
Max inlet temperature: 85°C
Min inlet pressure dynamic: 0.4 bar
Min temp to achieve hot or cold failsafe: 15°C
Outlet connections: 15mm compression
System installation: Unvented, pressurised, gravity and combi boilers
