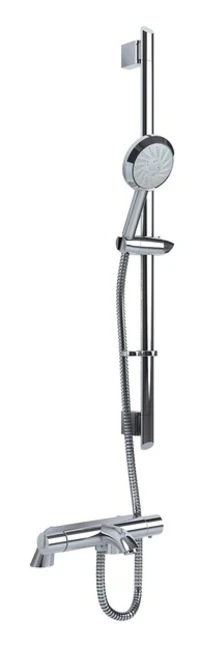

Inta Deluge Thermostatic Bsm With Pivoting Flexible Slide Rail Kit & Deck Mounting Legs – 910015Cp

Inta Deluge Thermostatic Bsm With Pivoting Flexible Slide Rail Kit & Deck Mounting Legs – 910015Cp

• Colour: Chrome
• Depth: 180mm
• Guarantee: 5 Years
• Inlet Connection: G ¾” F BSP
• Minimum Running Pressure: 0.2 Bar
• Plumbing System: Low Pressure
• Temperature Control: Thermostatic
• Width: 274mm

The Deluge range has been designed to give you the best of both worlds. The Deluge collection offers the ultimate balance between excellent performance and the latest designs to suite every bathroom.

Bar type bath shower valve with independent control of temperature and flow

Suitable for use with unvented supplies, combi boilers, gravity and mains pressure systems

Thermal cartridge technology

Temperature stability of +/-2°C

Fail safe on hot and cold supplies

Operating pressure range of 0.2 to 5 bar

TMV2 and WRAS approved

Complies with part G of the building regulations

Technical Specifications
Factory pre set temperature: 38°C with max temp stop
Inlet connections: G ¾” F BSP (valve body)
Max inlet pressure static: 5 bar
Max inlet temperature: 85°C
Min inlet pressure dynamic: 0.2 bar
Min temp to achieve hot or cold failsafe: 15°C
Outlet connections: G ½” BSP
System installation: Unvented, pressurised, gravity and combi boilers
