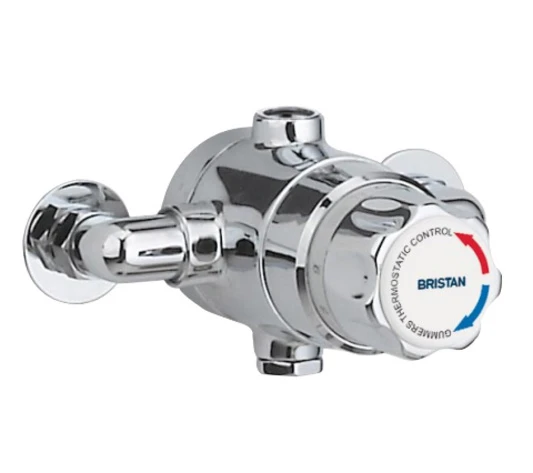

Bristan Non-Shut Off Exp Metal Knob – TS1503ECP-2000-MK

PLEASE NOTE – THIS VALVE IS NOT FOR DOMESTIC SHOWERING CONDITIONS:

THIS IS A NON SHUT OFF SHOWER VALVE AND IS USED IN CONJUNCTION WITH TIME FLOW VALVES – EG: TUF100ECP AND GROUP SHOWERING SITUATIONS.   THE VALVE IS DESIGNED NOT TO SHUT OFF.

PLEASE NOTE – THIS VALVE IS NOT FOR DOMESTIC SHOWERING CONDITIONS:

THIS IS A NON SHUT OFF SHOWER VALVE AND IS USED IN CONJUNCTION WITH TIME FLOW VALVES AND GROUP SHOWERING SITUATIONS.   THE VALVE IS DESIGNED NOT TO SHUT OFF.

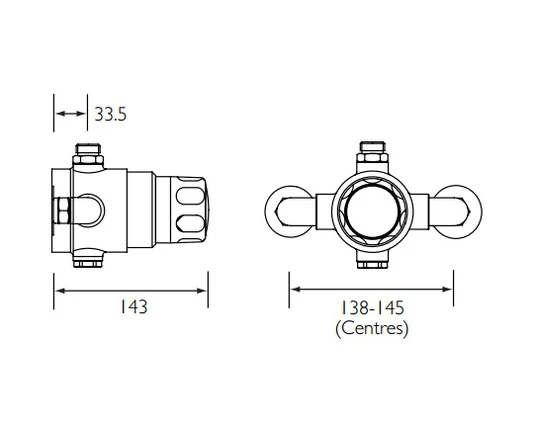

• Pipe Centers (mm): 138-145

• Ideal for either single point or limited group
  applications
• Single adjustable temperature control for user
  comfort
• Automatic shutoff in the event of hot or cold water
  supply failure
• Check valves and serviceable filters as standard
• Operates at a maximum pressure differential
  of 10:1
• Factory preset temperature: 43ºC
• Maximum hot water supply temperature: 80ºC
• Maximum dynamic pressure: 5 bar
